CentOS VM

Define the ssh key pairs used on Windows to connect the Azure VM using Putty with instructions located here.

Define the VM with the latest image of CentOS 7.6, Resource Group Py4SAS-vm, generate the ssh keys, and attach a 512GiB disk.

az vm create \
   --resource-group Py4SAS \
   --name Py4SAS-vm \
   --image OpenLogic:CentOS:7.6:latest \
   --size Standard_DS2_v2 \
   --generate-ssh-keys \
   --data-disk-sizes-gb 512

Returns:

{
  "fqdns": "",
  "id": "/subscriptions/e452751c-5818-4258-993b-247904c15f97/resourceGroups/Py4SAS/providers/Microsoft.Compute/virtualMachines/Py4SAS-vm",
  "location": "eastus",
  "macAddress": "00-0D-3A-17-8C-AD",
  "powerState": "VM running",
  "privateIpAddress": "10.0.0.4",
  "publicIpAddress": "104.XXX.XX.XX",
  "resourceGroup": "Py4SAS",
  "zones": ""
}

Attach the disk to VM instance

az vm disk attach \
     --resource-group Py4SAS \
     --vm-name Py4SAS-vm \
     --name Py4SAS-disk \
     --size-gb 512 \
     --sku Premium_LRS \
     --new

ssh into the VM

ssh trb@104.XX.XX.XX

View file system before adding partition.

$ df -h

Filesystem      Size  Used Avail Use% Mounted on
/dev/sda2        30G  1.3G   29G   5% /
devtmpfs        3.4G     0  3.4G   0% /dev
tmpfs           3.4G     0  3.4G   0% /dev/shm
tmpfs           3.4G  9.0M  3.4G   1% /run
tmpfs           3.4G     0  3.4G   0% /sys/fs/cgroup
/dev/sda1       497M   65M  433M  13% /boot
/dev/sdb1        14G   41M   13G   1% /mnt/resource
tmpfs           696M     0  696M   0% /run/user/1000

Use the bash command fdisk to partition the disk.

(echo n; echo p; echo 1; echo ; echo ; echo w) | sudo fdisk /dev/sdc

Write a file system to the partition.

sudo mkfs -t ext4 /dev/sdc1

Mount the disk.

sudo mkdir /opt && sudo mount /dev/sdc1 /opt

Verify the mountpoint is available.

$ df -h

Filesystem      Size  Used Avail Use% Mounted on
/dev/sda2        30G  1.3G   29G   5% /
devtmpfs        3.4G     0  3.4G   0% /dev
tmpfs           3.4G     0  3.4G   0% /dev/shm
tmpfs           3.4G  9.0M  3.4G   1% /run
tmpfs           3.4G     0  3.4G   0% /sys/fs/cgroup
/dev/sda1       497M   65M  433M  13% /boot
/dev/sdb1        14G   41M   13G   1% /mnt/resource
tmpfs           696M     0  696M   0% /run/user/1000
/dev/sdc1       504G   73M  479G   1% /opt

Make the disk available after reboot.   Return the UUID for the disk to mark an entry in /etc/fstab file.

sudo -i blkid

/dev/sdb1: UUID="f121de4a-765a-4e32-9bfa-733da972bbf1" TYPE="ext4"
/dev/sda1: UUID="7abf7f2c-6a8d-49de-9a87-3ff225f6e16a" TYPE="xfs"
/dev/sda2: UUID="08e9f7d6-7095-4811-af87-be3e4123c059" TYPE="xfs"
/dev/sdc1: UUID="9bd8ed43-b65d-47e9-b2dd-cbf896d80aaa" TYPE="ext4"

Add the following line into the /etc/fstab file.

UUID=9bd8ed43-b65d-47e9-b2dd-cbf896d80aaa /opt ext4    defaults,nofail   1  2

Install Azure CLI

Install the Azure command-line interface as an alternative to the web-based console.

Import the Microsoft repository key.

sudo rpm --import https://packages.microsoft.com/keys/microsoft.asc

Create a local azure-cli repository.

sudo sh -c 'echo -e "[azure-cli]\nname=Azure CLI\nbaseurl=https://packages.microsoft.com/yumrepos/azure-cli\nenabled=1\ngpgcheck=1\ngpgkey=https://packages.microsoft.com/keys/microsoft.asc" > /etc/yum.repos.d/azure-cli.repo'

Install Azure-CLI.

sudo yum install azure-cli

Login.

az login

Install Nginx

Add CentOS EPEL package.

sudo yum -y install epel-release

Install Nginx

sudo yum -y install nginx

Start Nginx.

service nginx start

Open Ports

az vm open-port --resource-group Py4SAS --name Py4SAS-vm --port 80

{
  "defaultSecurityRules": [
    {
      "access": "Allow",
      "description": "Allow inbound traffic from all VMs in VNET",
      "destinationAddressPrefix": "VirtualNetwork",
      "destinationAddressPrefixes": [],
      "destinationApplicationSecurityGroups": null,
      "destinationPortRange": "*",
      "destinationPortRanges": [],
      "direction": "Inbound",
      "etag": "W/\"32dea815-2aaf-468c-8bb9-93d57c1c1acd\"",
      "id": "/subscriptions/e452751c-5818-4258-993b-247904c15f97/resourceGroups/Py4SAS/providers/Microsoft.Network/networkSecurityGroups/Py4SAS-vmNSG/defaultSecurityRules/AllowVnetInBound",
      "name": "AllowVnetInBound",
      "priority": 65000,
      "protocol": "*",
      "provisioningState": "Succeeded",
      "resourceGroup": "Py4SAS",
      "sourceAddressPrefix": "VirtualNetwork",
      "sourceAddressPrefixes": [],
      "sourceApplicationSecurityGroups": null,
      "sourcePortRange": "*",
      "sourcePortRanges": [],
      "type": "Microsoft.Network/networkSecurityGroups/defaultSecurityRules"
    }

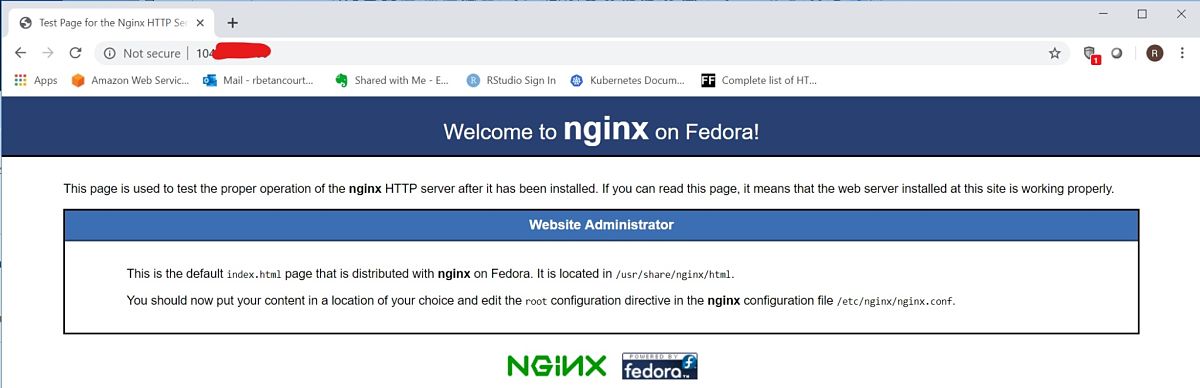

Open a browser and test.

http://104.XXX.XX.XX:80
